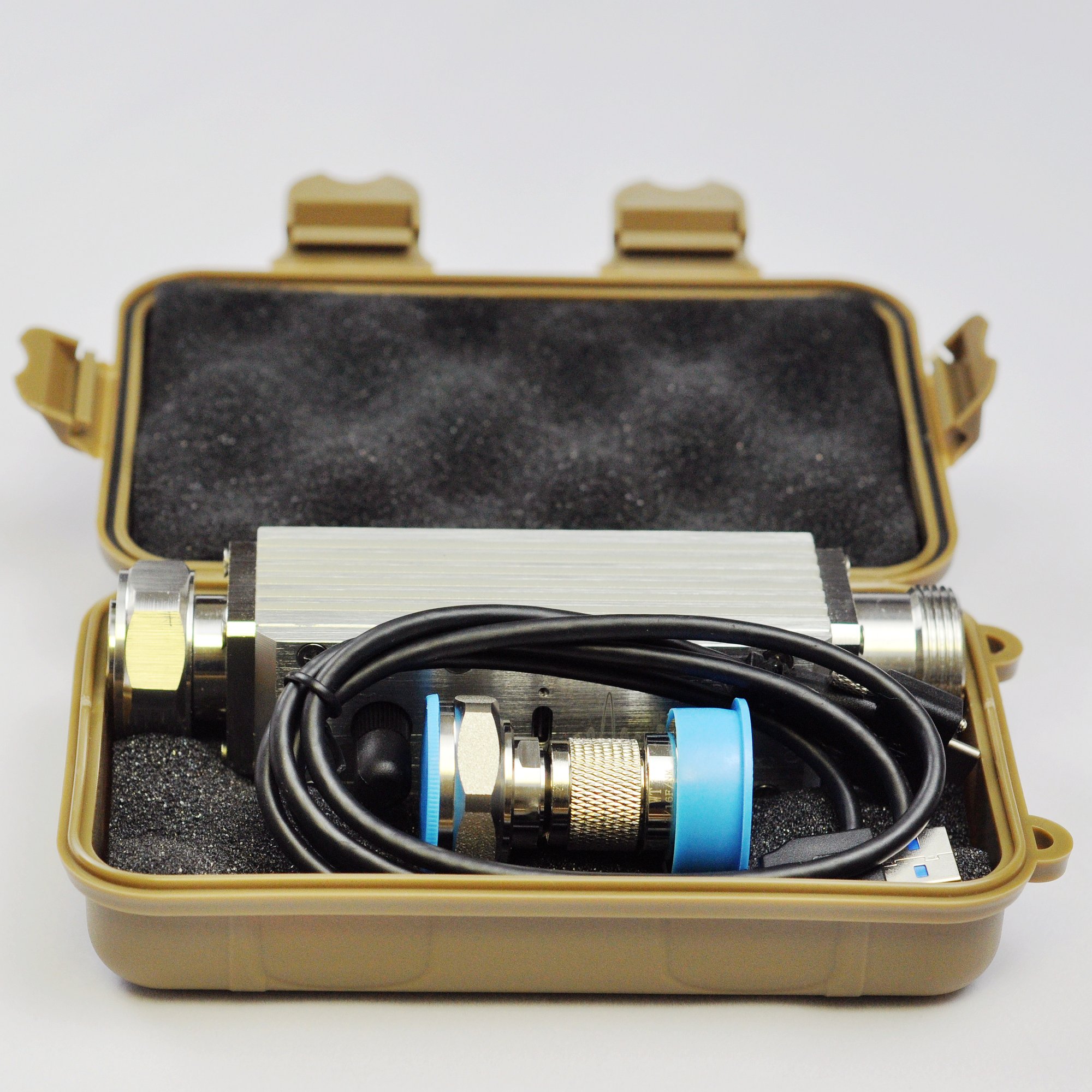

PM-1A High Power&Precision RF Power Meter
$299.00
On sale
Features
- Dual-Directional RF Detection: Integrates a fully CNC-machined cavity coupler with a high-dynamic-range detector for precise forward and reflected power measurement.
- Temperature Compensation: Includes a high-precision temperature sensor to minimize measurement drift.
- Bluetooth 5.0 Connectivity: Enables wireless operation and reduces interference.
- OS Compatibility: Supports dedicated applications for Android and HarmonyOS.
Specifications
- Model: PM-1A
- Frequency Range: 85–110 MHz (Measurements outside this range are possible with unguaranteed accuracy.)
- Power Measurement Range: 1–5200 W (Prolonged use above 3000 W is not recommended. Exceeding 5200 W may cause damage.)
- Measurement Signal: CW
- Input VSWR: ≤ 1.03
- Coupler Isolation: ≥ 32 dBc
- Input Connector: L29 DIN Male
- Output Connector: L29 DIN Female
- Impedance: 50 Ω
- Power Supply: USB Type-C, 5V DC
- Data Interface: Bluetooth
- Operating Altitude: < 4500 m
- Dimensions (Unit): 152 × 35 × 40 mm (Excluding connectors and protrusions)
- Weight: 600 g
