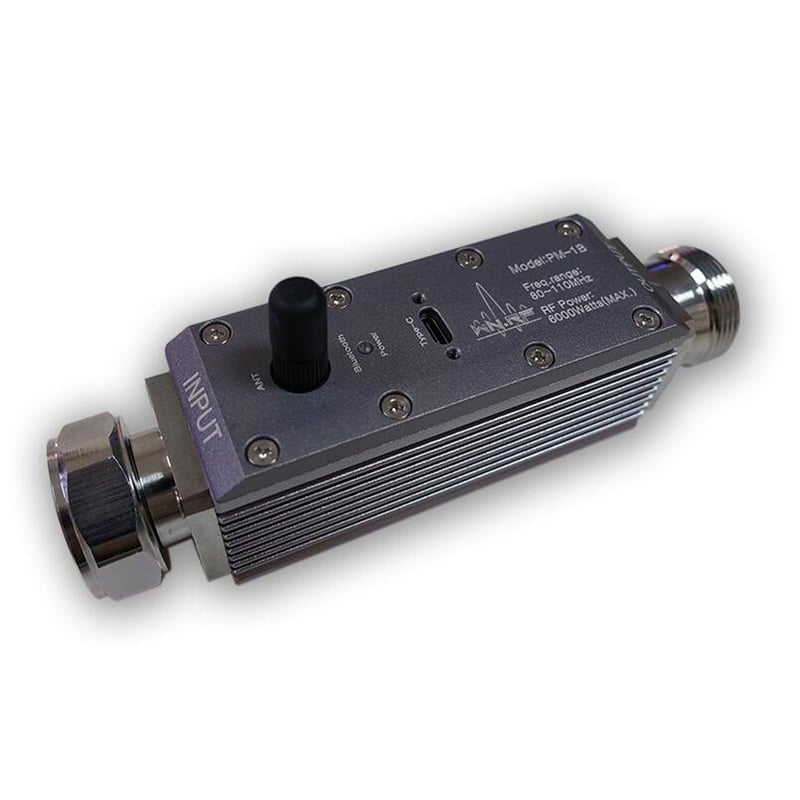

PM-1B High Power&Precision RF Power Meter
$399.00
On sale
Overview
It integrates a high-precision, bidirectional RF detection system, combining a fully CNC-machined cavity coupler with a high-dynamic-range detector. It features Bluetooth connectivity for flexible operation and data monitoring.
Key Features
- Monolithic Cavity Coupler: Utilizes a fully integrated, CNC precision-machined cavity coupler for enhanced stability and performance.
- Temperature Compensation: A built-in high-precision temperature sensor minimizes measurement errors caused by thermal drift.
- Wireless Connectivity: Employs Bluetooth 5.0 for cable-free operation, simplifying setup and improving interference immunity.
- Multi-Platform Support: Provides stable application support for monitoring on Android, HarmonyOS, and PC.
Specifications
- Model: PM-1B
- Frequency Range: 80 – 110 MHz (Measurements outside this range are possible with unguaranteed accuracy.)
- Power Measurement Range: 0.1 – 6000 W (Continuous operation recommended under 3000 W. Exceeding 6000 W may damage the detector.)
- Measurement Signal: CW
- Input VSWR: ≤ 1.02
- Coupler Isolation: ≥ 40 dBc
- Input Connector: L29 DIN Male
- Output Connector: L29 DIN Female
- Impedance: 50 Ω
- Power Supply: USB Type-C, 5V DC
- Data Interface: Bluetooth
- Operating Altitude: < 4500 m
- Dimensions (Unit): 152 × 35 × 40 mm (Excluding protrusions)
- Weight: 600 g
