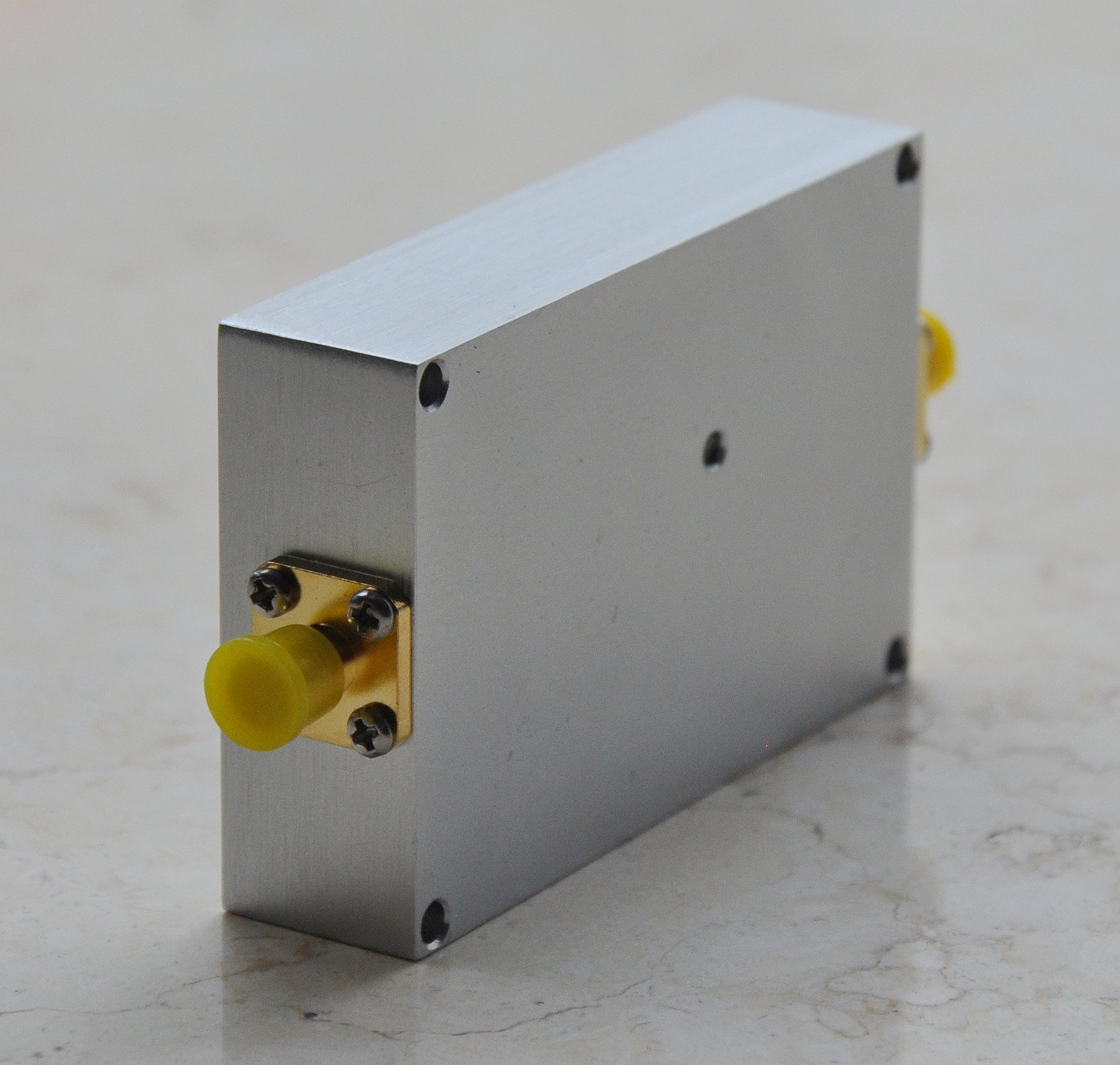

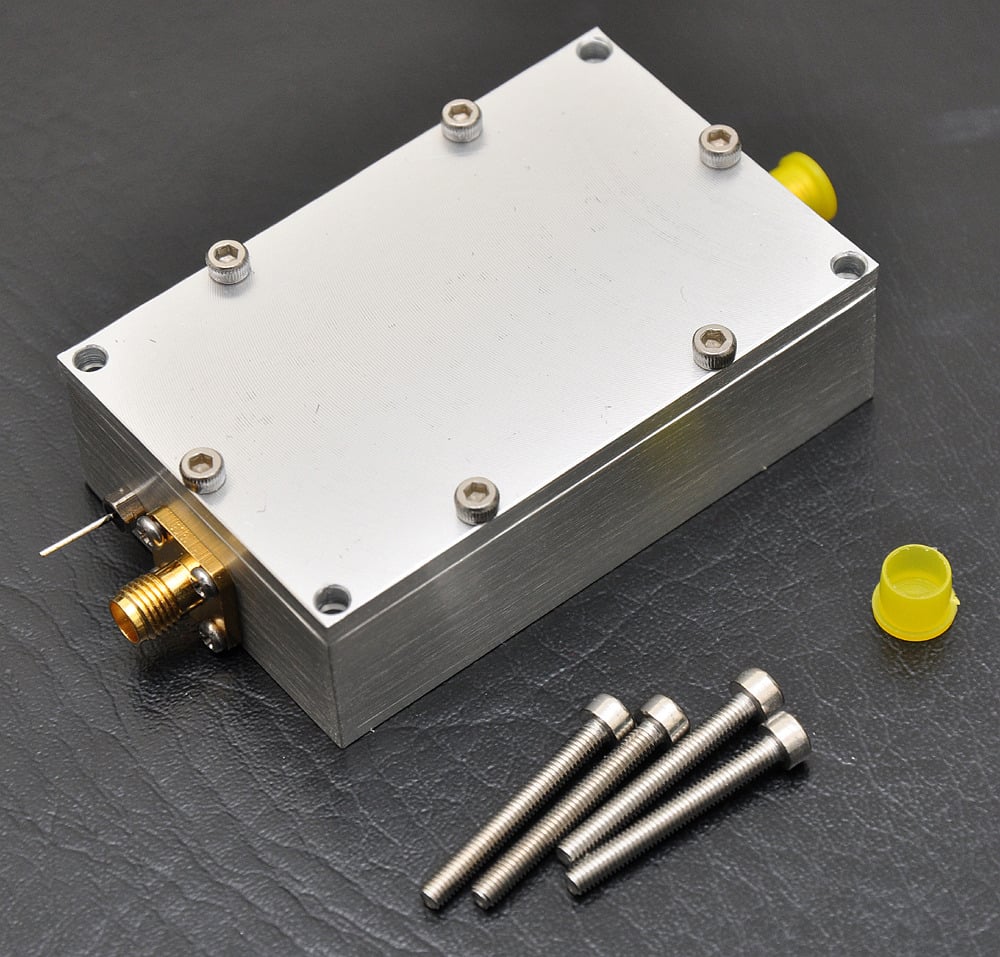

WA-5A FM 87.5-108MHz RF power amplifier 5W module Pallet
$50.00
On sale
Features
- Frequency Range: 87.5 – 108 MHz
- Impedance: 50 Ω
- Operating Voltage: 12 V DC
- Current: 1 A (typical)
- Input Level: 1 W
- Output Level: 5 W
- Interface: SMA‑Female (input/output)
- Board Dimensions: 70 × 45 × 20 mm
- Quantity Included: 1 pc
