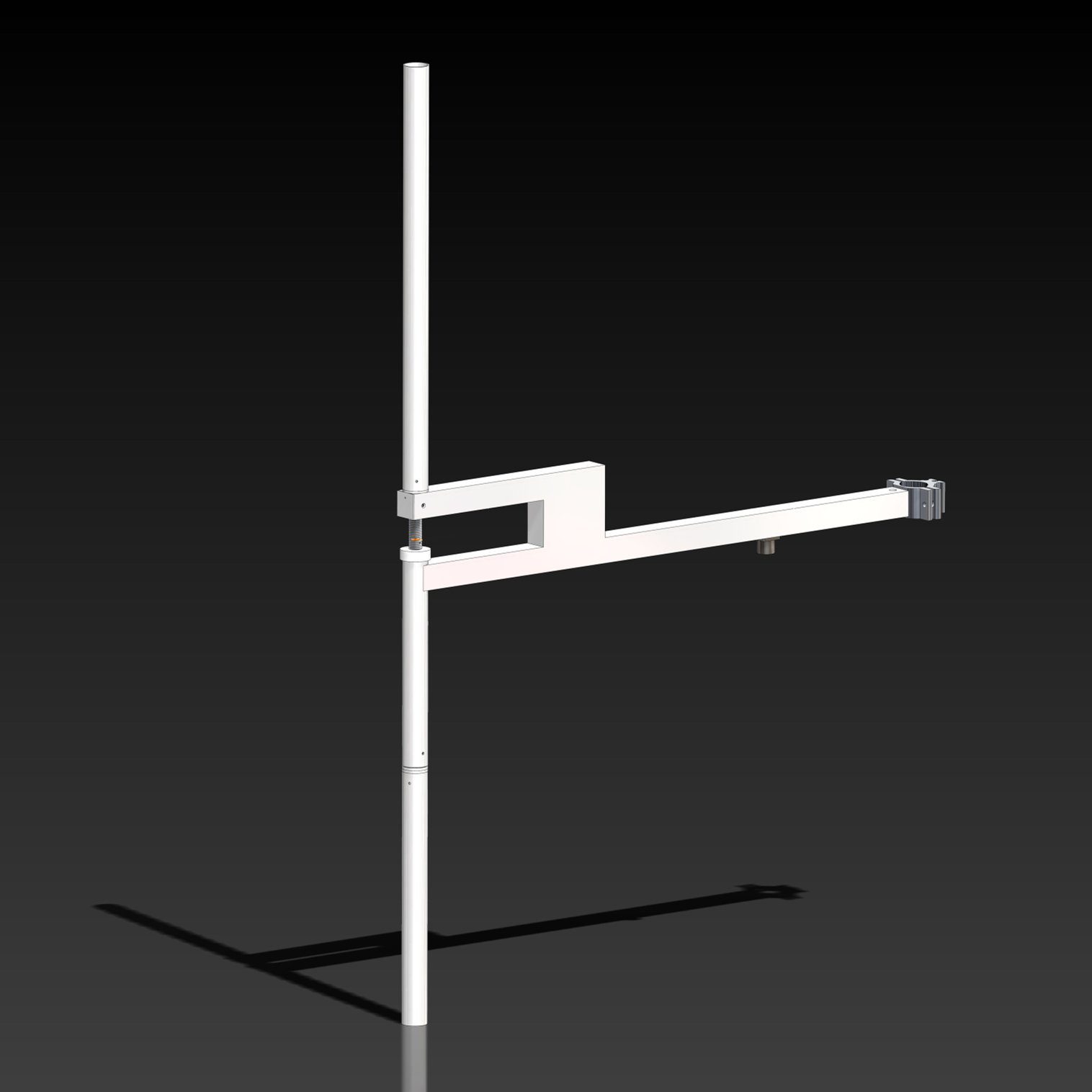

DP-1000 max 1KW FM Broadcast Omni Dipole Antenna
$238.00
On sale
FEATURES
- Vertical polarization with an omnidirectional radiation pattern.
- 1/2 wave dipole design provides higher gain and stronger signal output compared to standard 1/4 wave models.
- Compatible with FM transmitters up to 1000W.
- Professional FM ground plane antenna designed to extend broadcast coverage efficiently.

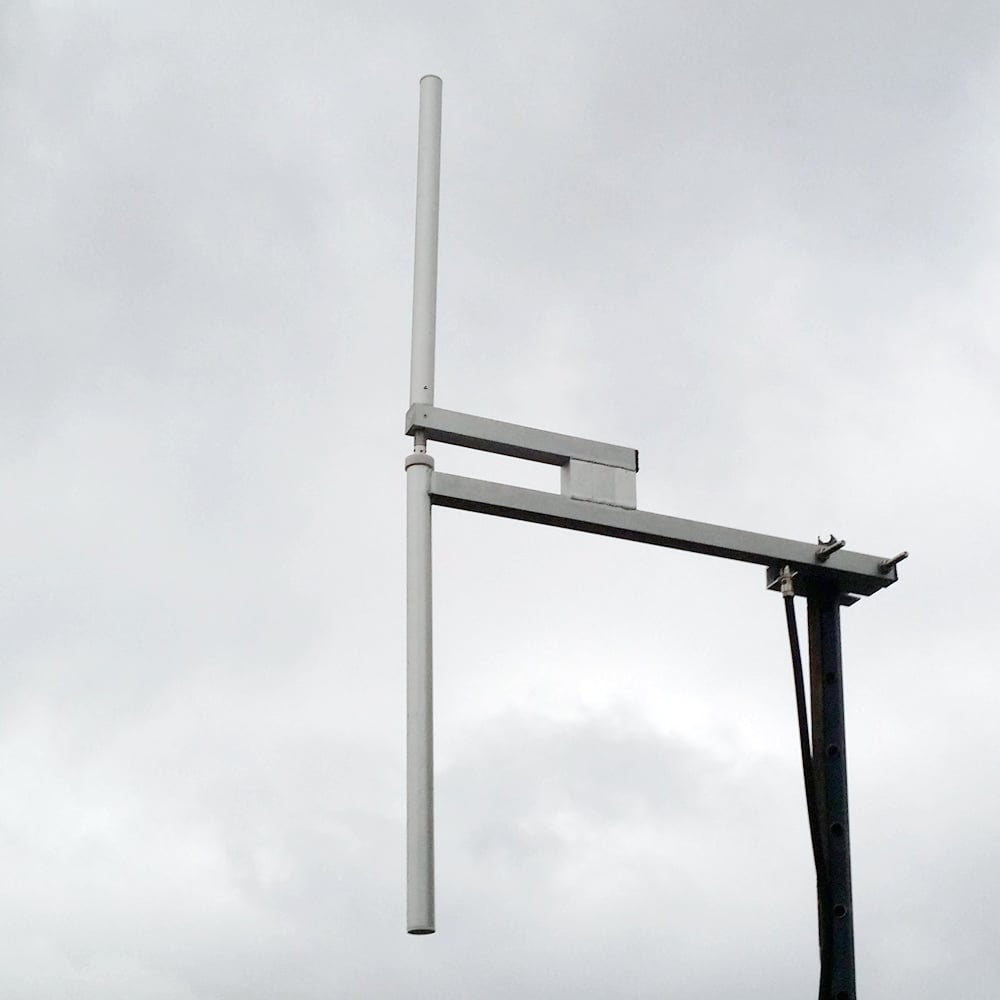

- Mounting at increased height will further extend operational range.
- Engineered for reliable long-range performance and stable signal transmission.

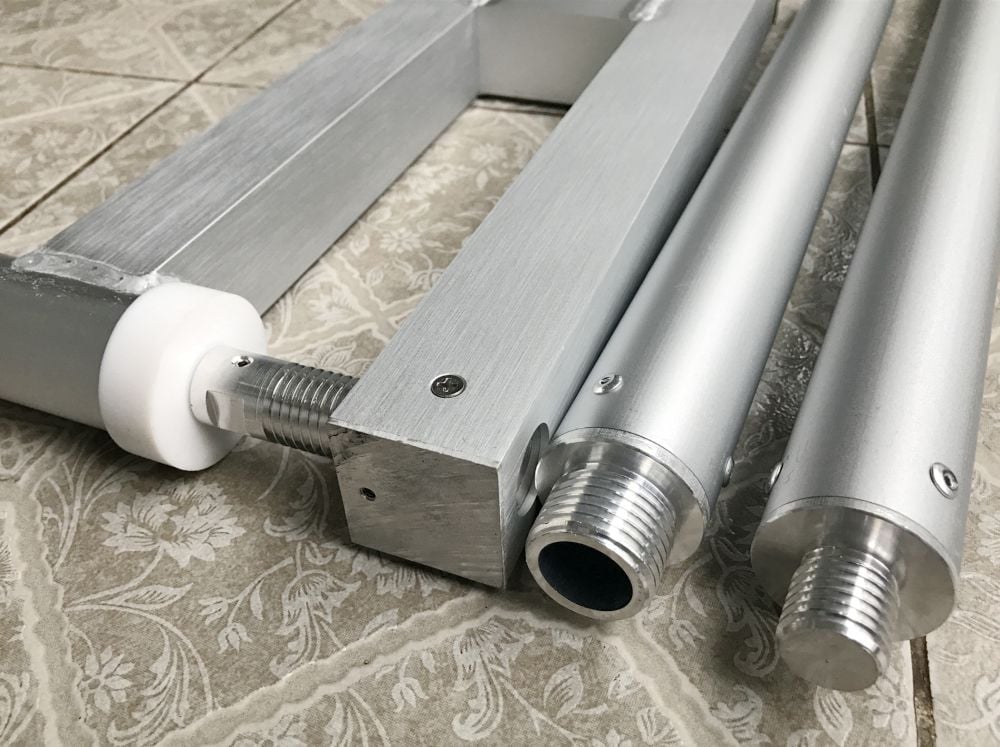

- Flexible mounting suitable for both permanent installation and temporary broadcast events. The antenna can be easily disassembled: ground plane elements are removable by loosening two bolts, and the radiator can be unscrewed if needed.
SPECIFICATIONS
- Frequency Range: 87.5 – 108 MHz
- Impedance: 50 Ω
- Connector: N-type （L16）Female
- Maximum Power: 1000W

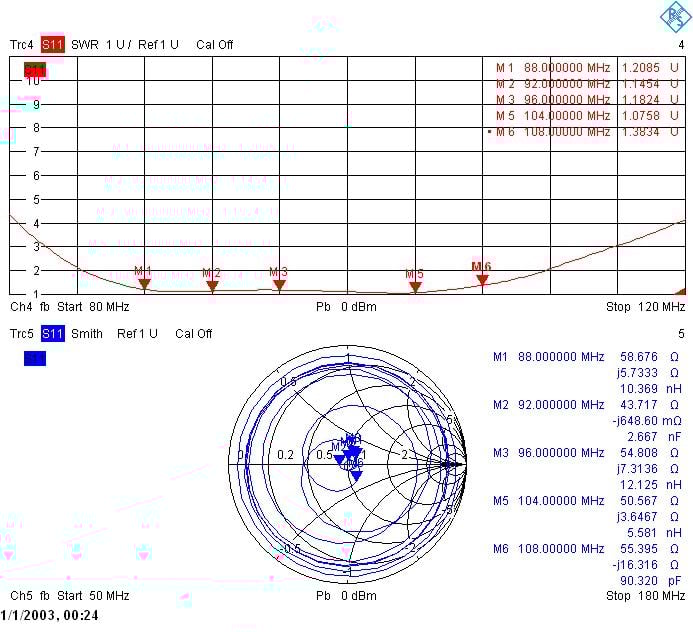

- VSWR: <1.35:1
- Gain: 2dB (relative to half-wave dipole) at 98MHz
- Radiation Pattern: Omnidirectional
- Free space variation: ±1.5dB
- Mounted on 100mm diameter pole variation: ±3dB
- Lightning Protection: All metal components are DC-grounded
- Dimensions: 143cm × 99cm × 5cm
Note: Coaxial cable not included
